Outstanding Performance through product integrity: The custom made indicators used on Brencor® analog and Brencor DIGI-Chek® gages are manufactured to a standard that is up to three times more stringent than AGD specifications require. These analog and digital instruments give the most repeatable and accurate measurements available today. (Shown in the picture below is our Digi-Chek Chamfer Chek and our Hole Chek with Setting Masters and Brencor Plates).

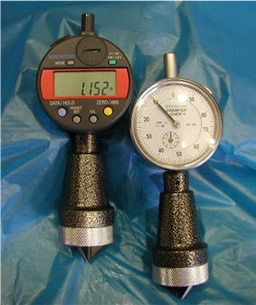

Chamfer-Chek®: Select I.D. to measure the top or O.D. to measure the minor diameter of tapered holes, chamfers or conical parts. Available in Analog or our Digi-Chek® digital gage.

Digi-Chek® Chamfer-Chek®: Features instant measurement, SPC output, repeatability ± 1 increment, easy to read LCD, inch/metric on the fly conversion, capable of 178 readings per second, feature lock, and three different hold options.

Resolution: Analog: .001” (.02mm) for 0°-90° models and .002” (.05mm) for 90°-127° models.

Applications: Steel valve inserts, brass fittings, machine tools and holders, circuit boards, sheet metal and stampings, pressure vessels, bronze bushings, steel governor cups.









Model Selector
Model
I.D. / O.D.
Range
Capacity
I.D.
0°-90°
0 – 3/8”
O.D.
0°-90°
0 – 3/8”
I.D.
0°-90°
0 – 1”
O.D.
0°-90°
0 – 1”
I.D.
0°-90°
0 – 1”
O.D.
0°-90°
0 – 1”
I.D.
90°-127°
0 – 1”
I.D.
0°-90°
1 – 2”
O.D.
0°-90°
1 – 2”
I.D.
90°-127°

1 - 2”

O.D.
90°-127°
1 – 2”

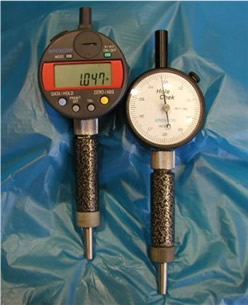

Hole-Chek®: Instant diameter measurement of small holes. Available as an analog gage or our Digi-Chek® digital gage.

Digi-Chek® Hole-Chek®: Features instant measurement, SPC output, repeatability ± 1 increment, easy to read LCD, inch/metric on the fly conversion, capable of 178 readings per second, feature lock, and three different hold options.

Resolution: .001” (.02mm) diameter increments.

Application: Inspects P.C. boards, screw machine parts, spray tips, injector nozzles, and plastic molded parts.

* Price Excludes Certification



NOTE: Add “D” for DIGI-CHEK® models (e.g. DHC-0400); add “M” for metric models (e.g. HC-0400M) . Other sizes available upon request.

Super Hole-Chek® is a high precision instrument measuring the diameter of small holes. Its resolution is as much as 10 times greater (± .0001”) than standard Hole-Chek® models. Custom designed models available.



Accuracy

The repeatability of standard Brencor gages is ± one gaging increment at constant temperature. For example, the Chamfer-Chek® CI-1090 reads directly in .001” increments; the accuracy, therefore, is ± .001”.



Model Selector
Model
Dia. Range
.010”-.040”
.010"-.040"
.030”-.130”
.030”-.130”
.130”-.230”
.130”-.230”
.010”-.330”

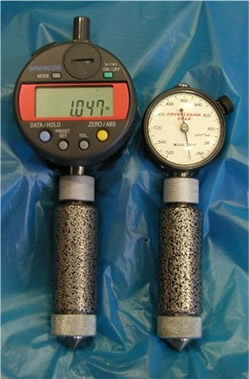

Countersink-Chek®: Compact gage measuring the major diameter of a countersink. Choose Analog or our Digi-Chek® digital gage. Available in 82°, 90°, 100°, 110°, 120°, and 130° countersinks.

Digi-Chek® Countersink-Chek®: Features instant measurement, SPC output, repeatability ± 1 increment, easy to read LCD, inch/metric on the fly conversion, capable of 178 readings per second, feature lock, and three different hold options.

Resolution: Full-round, exact angle, conical gaging plunger gives readings directly in .002” (.05mm) diameter increments.

Applications: Aircraft assembly, production and quality control prototypes, production machining, automotive assembly, sheet metal work.

Request More Information on the Items Below



















Model Selector
82° 90° 100° 110° 120° 130° Range
DCS-1782 DCS-1790 DCS-1710 DCS-1711 DCS-1712 DCS-1713 .020° - .170°
DCS-3682 DCS-3690 DCS-3610 DCS-3611 DCS-3612 DCS-3613 .160° - .360°
DCS-5682 DCS-5690 DCS-5610 DCS-5611 DCS-5612 DCS-5613 .369° - .560°
DCS-7882 DCS-7890 DCS-7810 DCS-7811 DCS-7812 DCS-7813 .560° - .780°
