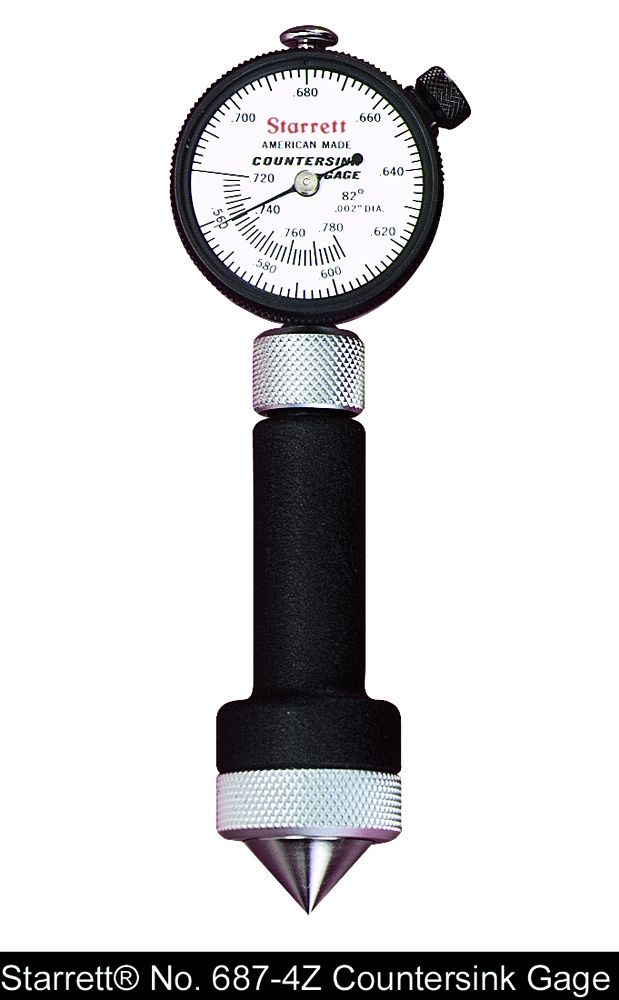

STARRETT 687-4Z Countersink Gage (687-4Z)
SKU
870-687-4Z
STOCK-4 WEEKS
| VENDOR PART NUMBER | 687-4Z |
|---|---|
| Type | Inch |
| Style | Mechanical |
| Min Range | .560 In |
| Inch Resolution | .002 In |
| Max Range | .780 In |
| Technical Specification 1 | Ground surfaces are of hardened tool steel. Indicators AGD design. 82 Deg Angle. Directly reads the large diameter of the countersink. Includes set master ring. Includes set master ring. |
Inch Reading Dial Indicator Countersink Gage, .560-.780" Range, .002" Grad, 82 Degree Angle. Starrett Countersink Gages are offered in three different angles so that the gage sets on the angular side of the countersink, as opposed to a chamfer gage which sets on the top edge of the chamfer. .560-.780" Range with Case.
